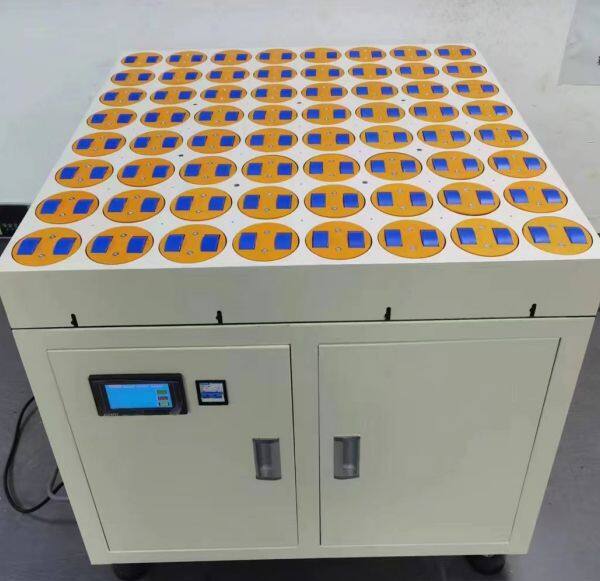

introduce of the swivel wheel sorter

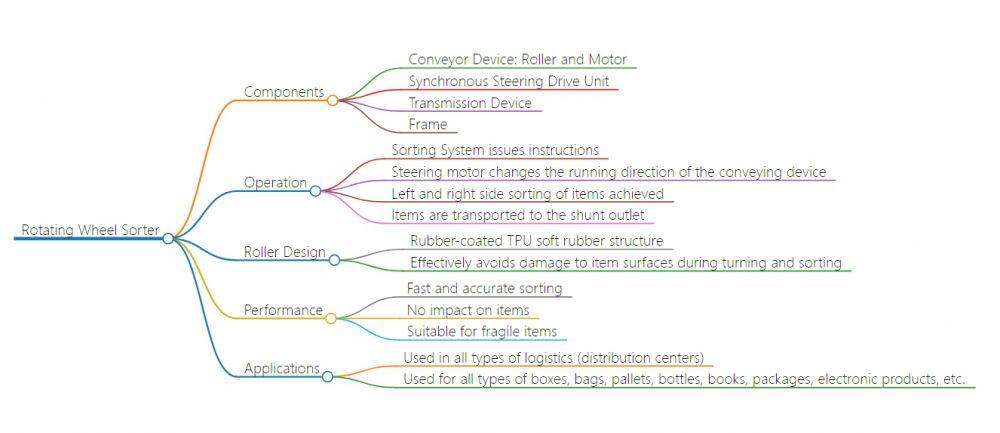

1. Swivel wheel sorting machine, driven and turned by two sets of servo motors, gear meshing mechanism.

1.1 Angle: set 0-360 degrees;

1.2 Load: less than 60Kg;

1.3 Linear conveying speed: 0-100 meters/Min;

1.4 Reset time after rotation: about 260ms;

1.5 Docking method: I/O or 485#;

1.6 Servo motor: 0.4KW, 2 sets;

1.7 Reducer: 60#, 2 sets;

1.8 Touch screen: Chinese and English, switchable interface;

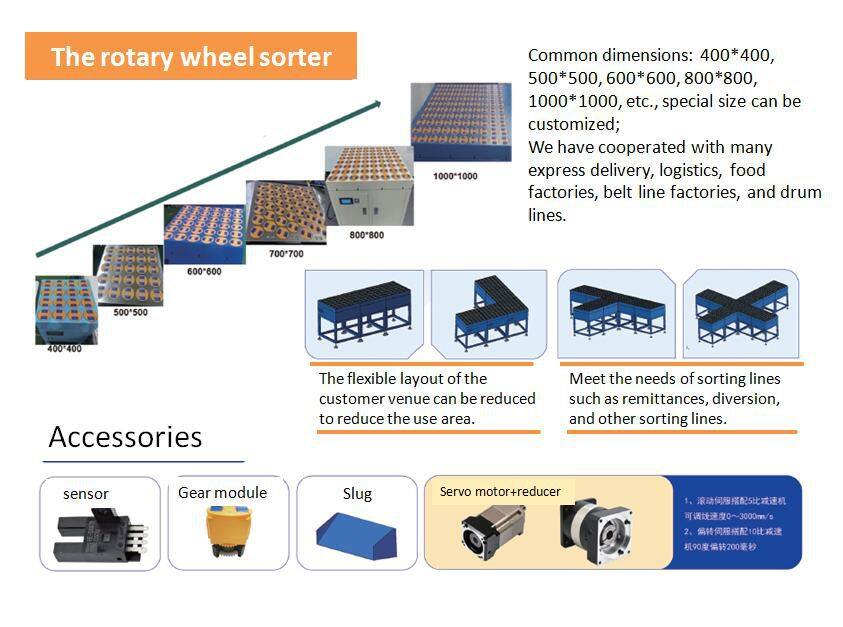

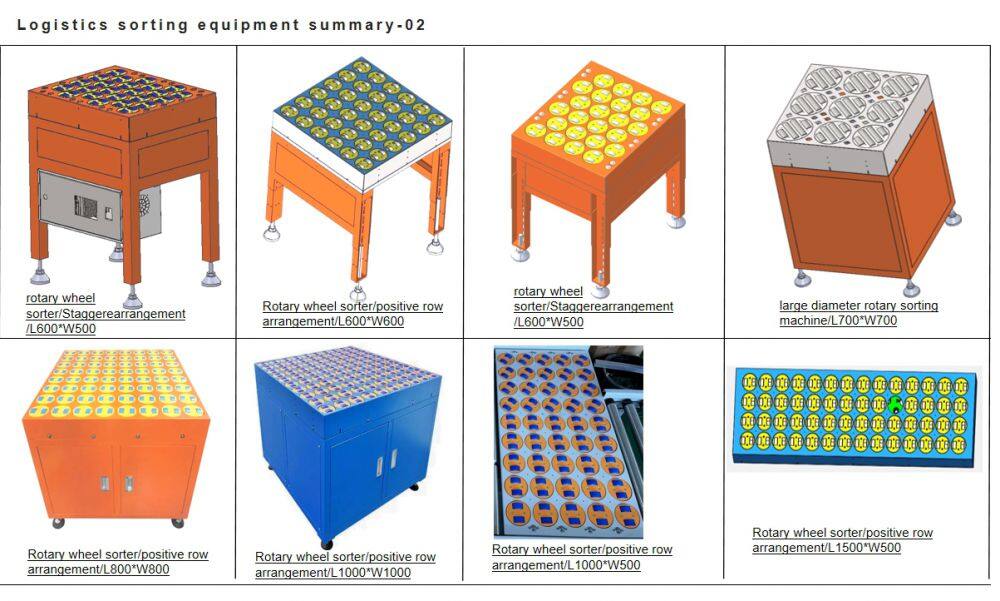

1.9 Size: 400*400, 500*500, 600*600, 800*800;

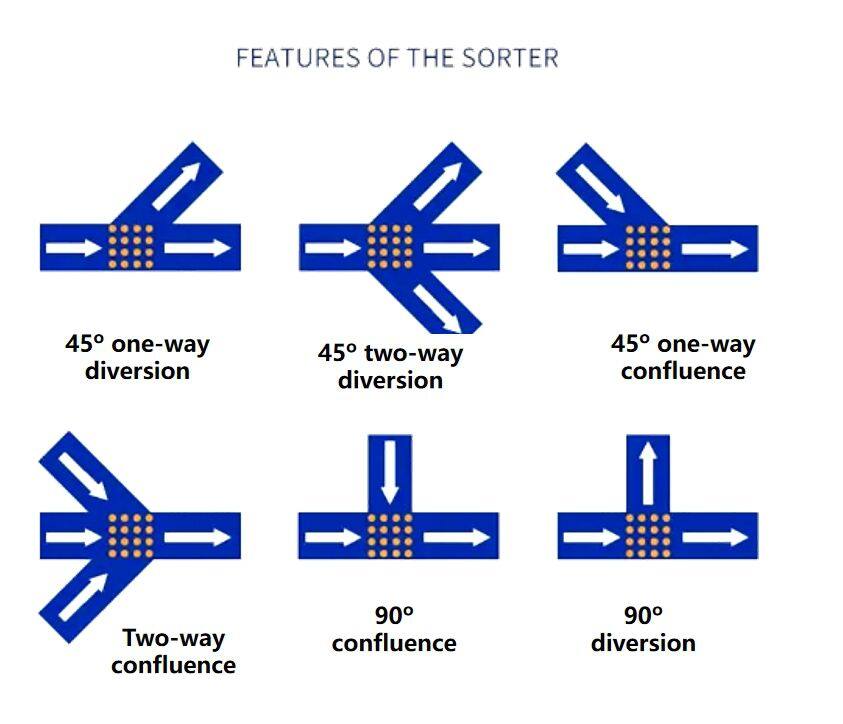

2. Application: connected with conveyor belt line and roller line for merging, diversion, weighing and rejecting, palletizing, etc.

3. Application: used in express delivery, logistics, electronics, books, auto parts, warehousing, food, packaging and other industries. Easy to operate and maintain;

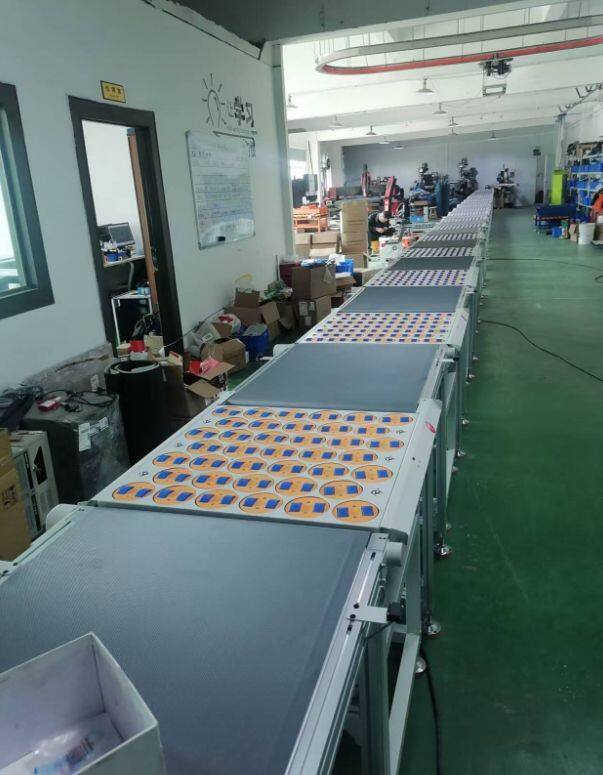

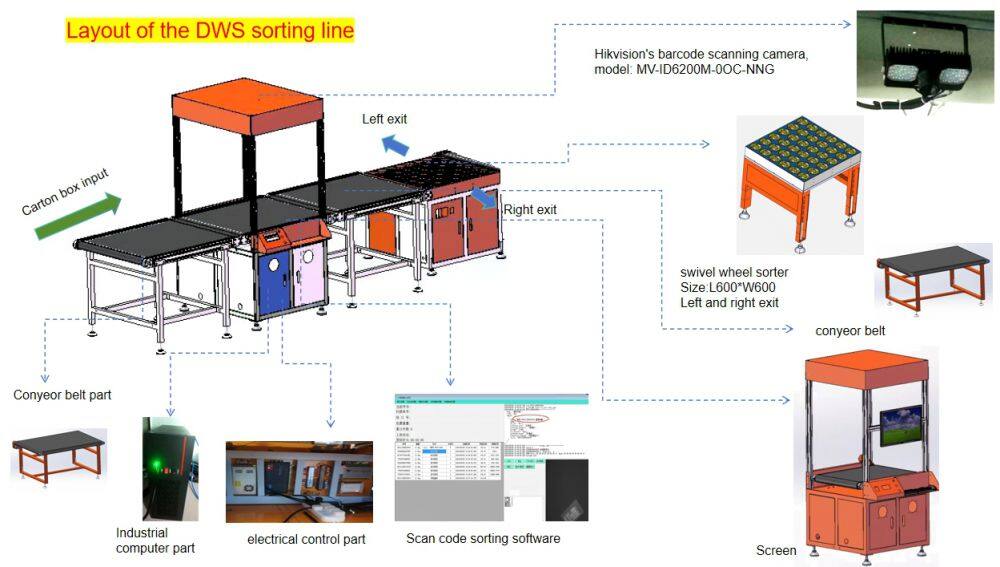

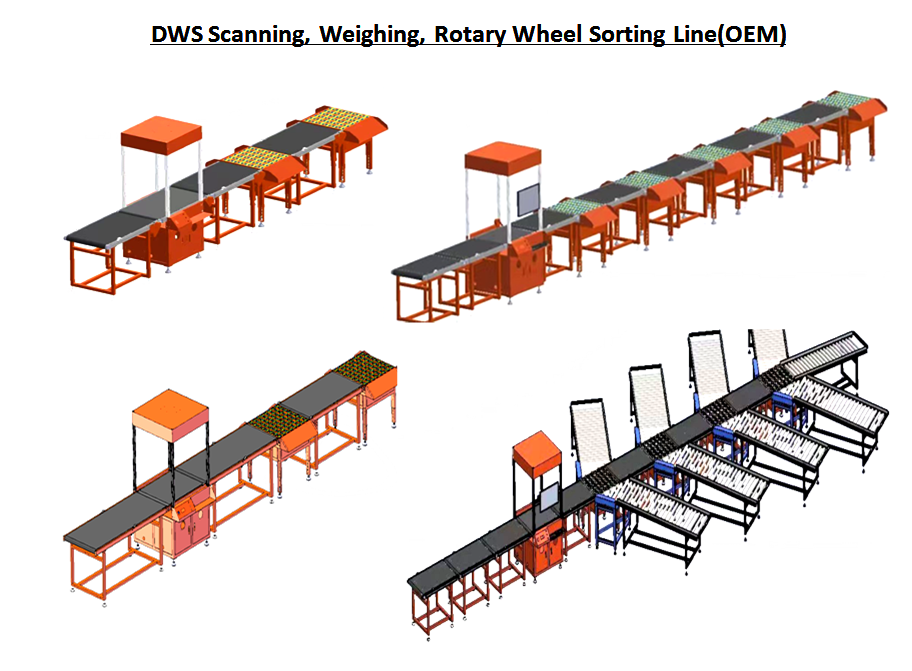

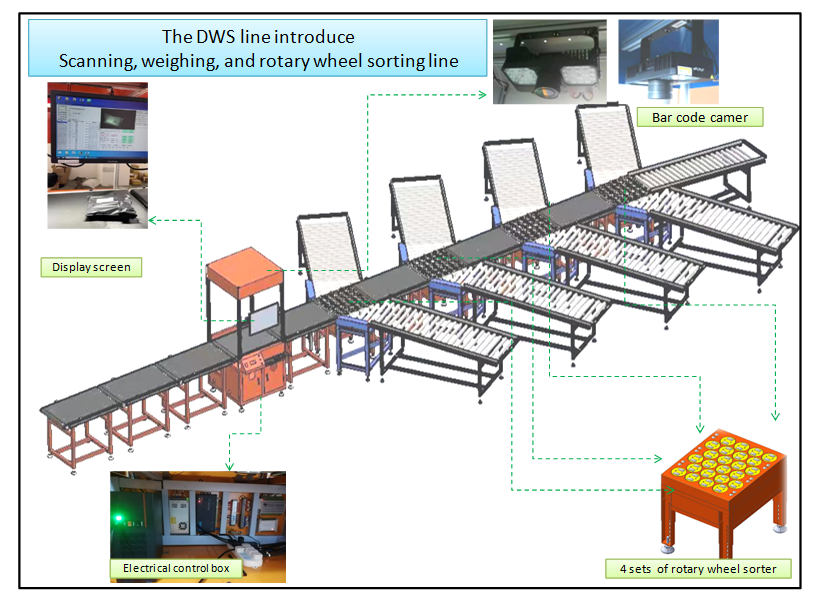

4. DWS system sorting line can be customized according to customer requirements, including code scanning, weighing, and square measurement.

5. Separate rotary wheel sorting machines and DWS sorting lines are exported to Armenia, Thailand, the United States, Germany and other places. Received unanimous praise from customers!

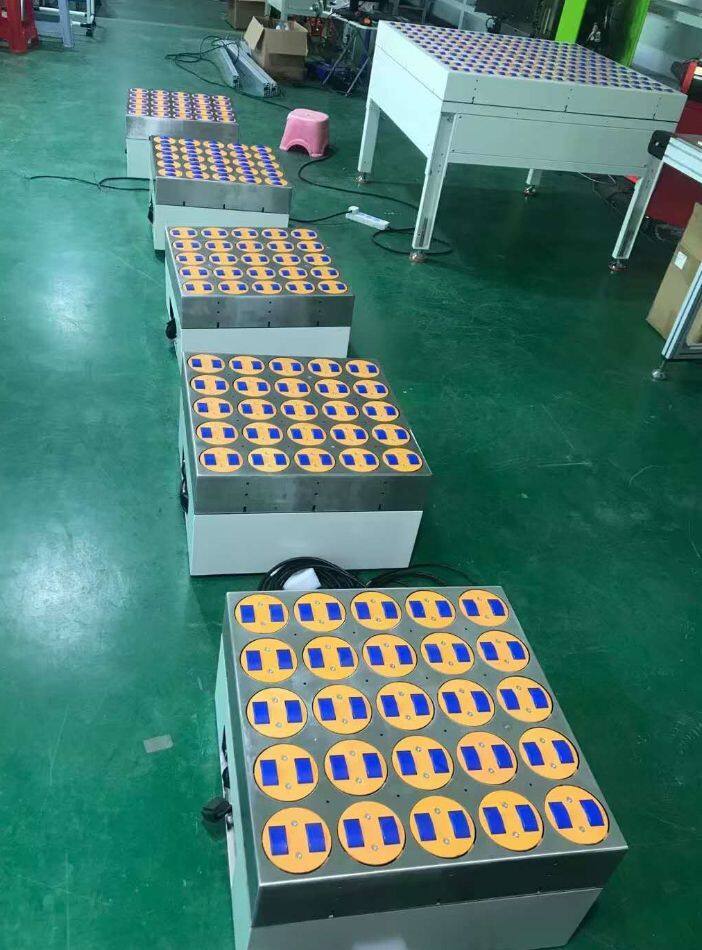

6. Over the past 5 years, a single rotary wheel sorting machine has sold more than 6,000 units.

------------------------------------------------------------------
